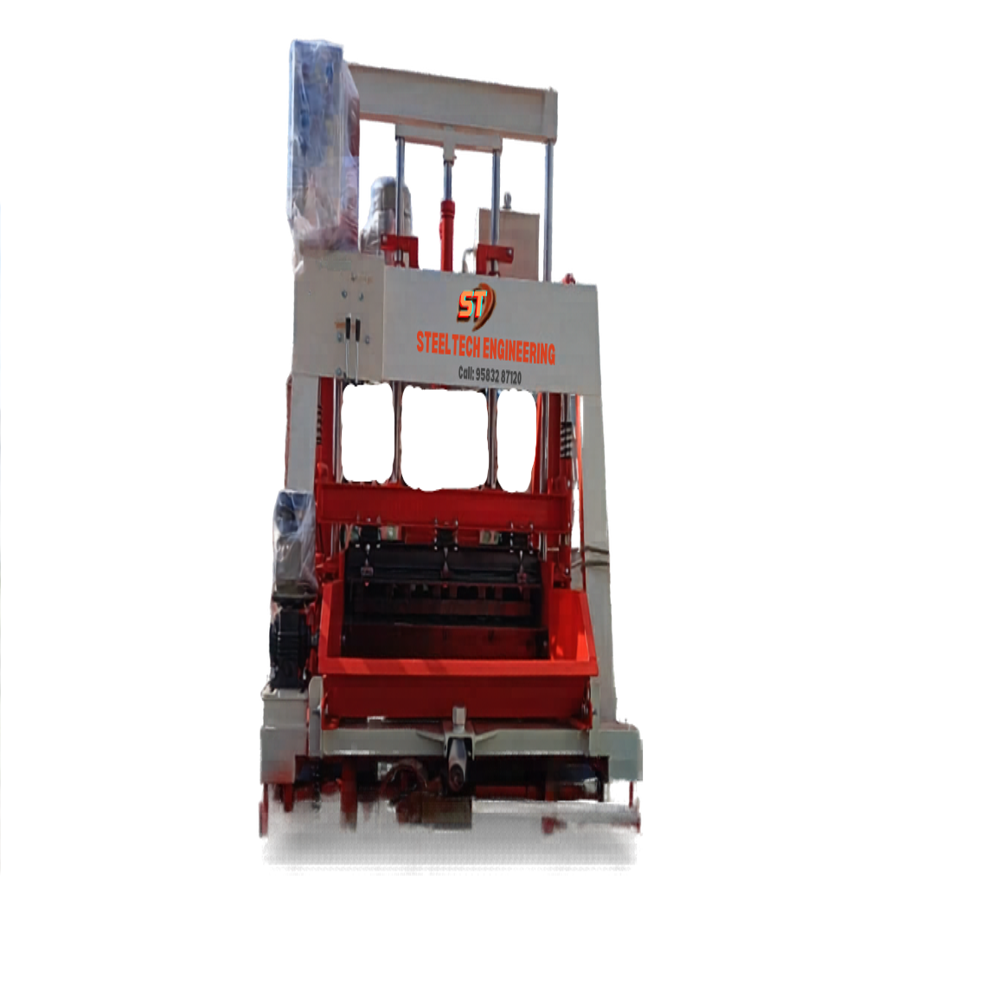

Hollow Block Machine

Name: Hollow Block Machine
Brand: STEEL TECH ENGINEERING
Price: 400000.0 INR
Availability: InStock

Price 400000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Hollow Block Machine Specification

Product Type
Hollow Block Machine

General Use
Hollow Block Production

Material
Steel

Capacity
12000-15000 blocks/8 hours

Weight (kg)
4600 kg

Type
Fully Automatic

Computerized
No

Automatic
Yes

PLC Control
Yes

Method
Other

Vibration Type
Mold Vibration

Vibration Frequency
4200 r/min

Maximum Pressure
16 MPa

Machine Power
11.6 kW

Voltage
380 V

Dimension (L*W*H)
3800 x 2100 x 2300 mm

Pallet Size
880 x 680 x 25 mm

Minimum Height
60 mm

Maximum Height
200 mm

Number of Bricks
8 (400x200x200 mm per cycle)

Feature
Durable Structure, Low Maintenance

Color
Blue & Yellow

Block Output/Hour
1500-1800 blocks/hr

Cooling System
Air Cooling

Control System
Programmable Logic Controller (PLC)

Oil Tank Capacity
300 Litres

Transport Belt Length
6000 mm

Operating Mode
Semi & Fully Automatic Both Available

Molding Area
860 x 660 mm

Applicable Raw Materials
Cement, Sand, Fly Ash, Gravel, Other Aggregates

Noise Level
Below 80 dB

Cycle Time
15-20 seconds

Hollow Block Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
30 Days

About Hollow Block Machine

A Hollow Block Machine is a mechanical device used to manufacture concrete hollow blocks that are widely used in the construction of walls, buildings, and other structural works. The machine compresses a mixture of cement, sand, aggregate (stone chips), and water into molds to form blocks with hollow spaces inside them.

The hollow spaces in the blocks help reduce the weight of the block, improve thermal insulation, and decrease the amount of raw material used. Hollow block machines are commonly used in construction industries to produce blocks in large quantities quickly and efficiently.

The working process of a hollow block machine involves mixing the raw materials, filling the mixture into a steel mold, and applying vibration and compression to compact the mixture into the desired block shape. After molding, the blocks are removed and left to cure for several days so that they gain the required strength.

Hollow block machines are available in different types such as manual, semi-automatic, and fully automatic machines, depending on the production capacity and level of automation. These machines can produce blocks of various sizes, commonly 4 inch, 6 inch, and 8 inch blocks, which are used for different construction purposes.

Because of their high production capacity, uniform block size, durability, and reduced construction cost, hollow block machines are widely used by construction companies, contractors, and small manufacturing units.

High Output and Efficiency

Capable of producing 12,000-15,000 blocks during an 8-hour shift, this hollow block machine is ideal for high-demand operations. Its rapid cycle time and spacious molding area allow for the production of eight 400x200x200 mm blocks per cycle, maximizing productivity and reducing labor costs.

Versatile and User-Friendly Operation

Choose between semi-automatic or fully automatic operation based on your production needs. The Programmable Logic Controller (PLC) ensures user-friendly control and precise programming, suitable both for skilled operators and those new to block manufacturing.

Durable and Low-Maintenance Design

Constructed from robust steel, this machine is built to withstand continuous use. It features an air cooling system, large oil tank, and easy-access components, requiring minimal maintenance while maintaining high reliability and consistent performance.

FAQ's of Hollow Block Machine:

Q: How does the hollow block machine operate?

A: The machine operates in both semi-automatic and fully automatic modes. Operators load raw materials such as cement, sand, fly ash, and aggregates, while the PLC control system ensures precise processing, vibration, and compaction, resulting in uniformly molded blocks each cycle.

Q: What types of materials can be used with this machine?

A: This hollow block machine is compatible with various materials including cement, sand, gravel, fly ash, and other aggregates, providing flexibility for different construction requirements and block types.

Q: When is the ideal time to use this block machine in a project?

A: The machine is best utilized during the building phase that requires a large volume of uniform hollow blocks, ensuring timely supply and consistency in structural materials for your project.

Q: Where can this machine be installed and used?

A: It is designed for installation in industrial settings, manufacturing units, or at dedicated construction sites across India. Its robust structure and design are suitable for various climates and work environments.

Q: What is the block production process with this machine?

A: Raw materials are mixed and loaded into the hopper. After compaction and vibration in the mold, blocks are formed and discharged onto pallets through a 6000 mm transport belt. The entire process is managed by a PLC system for accuracy and safety.

Q: Why choose this machine over others on the market?

A: This model offers rapid cycle times, high hourly output, versatile automation options, and low noise levels below 80 dB. Its durable steel structure ensures longevity, while the PLC control and air cooling system reduce maintenance needs and operational costs.

Q: What are the primary benefits of using this hollow block machine?

A: Key benefits include high block output, efficient automation, robust construction, flexibility in raw material use, energy efficiency, and reliable performance-all of which contribute to increased productivity and reduced overall production expenses.
